OLED 屏幕应用

前言

模块介绍

模块尺寸

接口定义

Arduino控制OLED

1 OLED显示文字

电路连接

示例程序

效果演示

2 OLED显示汉字

电路连接

示例程序

效果演示

3 OLED显示图片

电路连接

示例程序

效果演示

相关资源

1 取模软件PCtoLCD2002

2 IIC设备扫描获取地址

前言

相信在您的创客路上, 有许多项目需要进行图像化人机界面进行显示文本或图形, 一直以来LED和LCD是传统选择, 但近些年来, 有一种显示器越来越流行—-OLED

OLED应用于各种大小显示需求, 大到电视屏幕, 小到微型智能穿戴设备的显示器都是它的用武之地. 在各种照明条件下它都能熠熠生辉, 且消耗的电流很小! OLED相对于LCD等有着极大的优势

OLED是一种利用多层有机薄膜结构产生电致发光的器件，它很容易制作，而且只需要低的驱动电压，这些主要的特征使得OLED在满足平面显示器的应用上显得非常突出。OLED显示屏比LCD更轻薄、亮度高、功耗低、响应快、清晰度高、柔性好、发光效率高，能满足消费者对显示技术的新需求。全球越来越多的显示器厂家纷纷投入研发，大大的推动了OLED的产业化进程。(资料来源于百度百科)

以上介绍了OLED的优势, 相信大家都对如何使用Arduino去控制OLED显示比较好奇, 因此本篇将对Arduino如何控制OLED展开说明,以创客朋友们常用的OLED 0.96 IIC 128×64模块进行实例应用讲解其他尺寸的OLED可参考本教程进行学习和开发

模块介绍

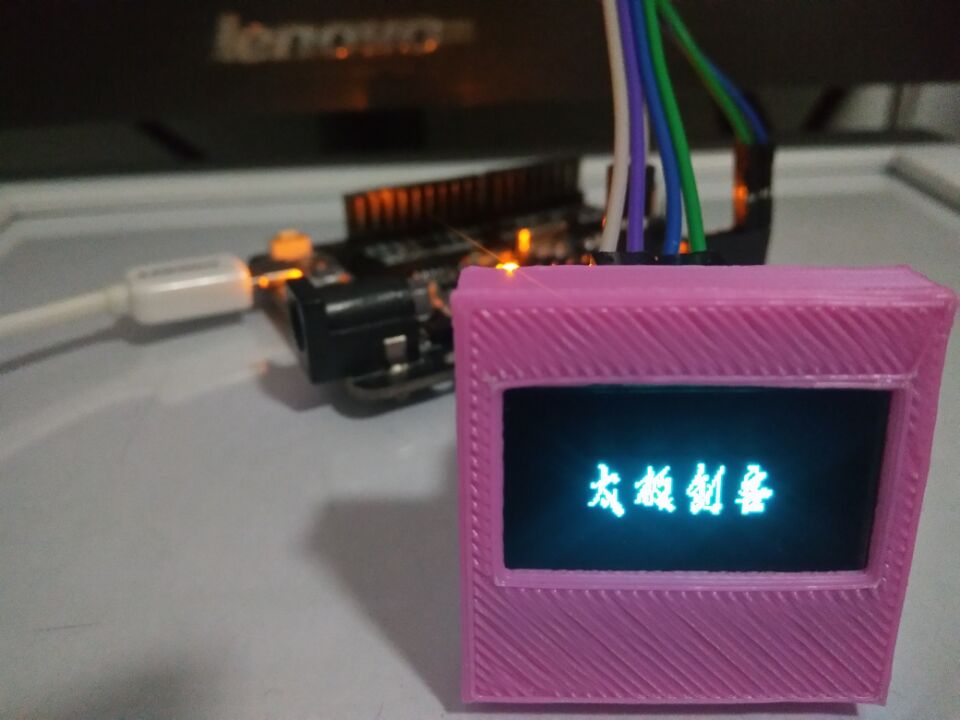

OLED0.96屏幕样图 Arduino OLED0.96 屏幕模块太极创客 — OLED0.96屏幕样图

首先对OLED 0.96 IIC 128x64模块里的几个参数进行说明, 0.96指的是屏幕的显示尺寸0.96inch, 128×64指的是屏幕的分辨率为128×64, 而IIC指的是该模块使用IIC协议进行通讯, (关于Arduino-IIC协议可参考Arduino-Wire)

以下是OLED 0.96 12864屏幕的基本介绍

高分辨率:128×64(和12864同分辨率,高PPI)
超大可视角度:大于160°(显示屏中可视角度最大的一种屏幕)
超低功耗:正常显示0.06w(远低于TFT显示屏)
宽电压供电(3V~5V),兼容3.3V和5V电平逻辑,无需电平转换芯片
IIC接口只需2个IO轻松点亮
工作温度范围为工业级(-20℃~70℃)
军工级工艺标准,长期稳定工作
提供丰富的多平台例程,提供底层驱动技术支持
黄蓝、白、蓝三种颜色显示方案可选

模块参数

名称	颜色分类
显示颜色	白色	蓝色	黄蓝双色
SKU	MC096GW	MC096GB	MC096GY
尺寸	0.96(inch)
类型	OLED
OLED驱动芯片	SSD1306
分辨率	128*64 (Pixel)
模块接口	IIC，①-GND,②-VCC,③-SCL,④-SDA
有效显示区域	21.744×10.864(mm)
模块尺寸	27.3×27.8(mm)
视角	>160°
工作温度	-20℃~70℃
存储温度	-30℃~80℃
工作电压	3.3V / 5V
功耗	全亮约为25mA，全灭约为1.5mA。
产品重量	15(g)

模块尺寸

为了方便更多创客朋友们开发自己的OLED创客作品, 以下提供OLED0.96的模块尺寸图供大家参考

资料来源于lcdwiki-OLED0.96

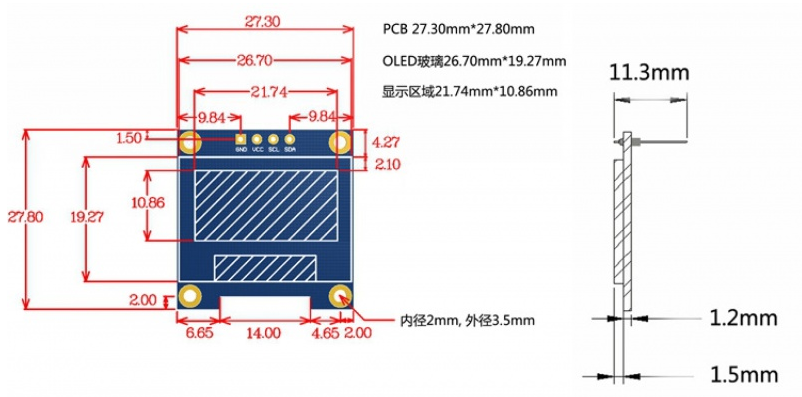

OLED0.96屏幕尺寸图Arduino OLED0.96 屏幕模块太极创客

接口定义

OLED0.96 IIC模块使用IIC通信接口，只需要接4根线就可以完成OLED屏数据通信

VCC：电源正极（接5V电源）
GND：电源负极（接地）
SCL：IIC时钟信号线
SDA：IIC数据信号线

VCC接到开发板的5V电源引脚上，GND接到开发板GND引脚上，SCL和SDA需要根据不同的开发板引脚定义来接线(可参考Arduino-Wire)

该OLED模块的IIC地址为0x3C

Arduino控制OLED

我们使用Adafruit_SSD1306库来更加快捷高效的实现Arduino控制OLED, 在使用这个库时,需要依赖Adafruit-GFX-Library库才能使其正常工作,因此您需要在您的ArduinoIDE同时安装这两个库, 此外您可以通过Arduino自带的库管理器来安装,在安装时,如果出现以下情况, 点击Install all即可,这是Adafruit-GFX-Library的依赖

OLED0.96依赖库安装Arduino OLED0.96 屏幕模块太极创客 — OLED0.96依赖库安装Arduino

Arduino使用硬件IIC，芯片内部已经对IIC引脚做了定义，因此软件上不需要再对IIC引脚进行定义，只是不同型号的单片机，IIC引脚定义不一样，需要在接线上根据开发板做调整。

我们将以控制OLED 0.96 I2C 屏幕为例子进行说明。无论你手里的OLED 0.96是单色的还是双色的都没关系, 这些显示器都是基于SSD1306 OLED驱动芯片，因此它们都可以使用Adafruit_SSD1306库来控制显示。

在开始之前,请大家在屏幕建立一个坐标系的概念,因为在程序里,位置都是以坐标的形式去定位的,以OLED 0.96 128X64为例,面向屏幕,以屏幕左上角为坐标原点,横向向右是X轴，竖向向下是Y轴

OLED0.96坐标系建立Arduino OLED0.96 屏幕模块太极创客 — OLED0.96坐标系建立

1 OLED显示文字

电路连接

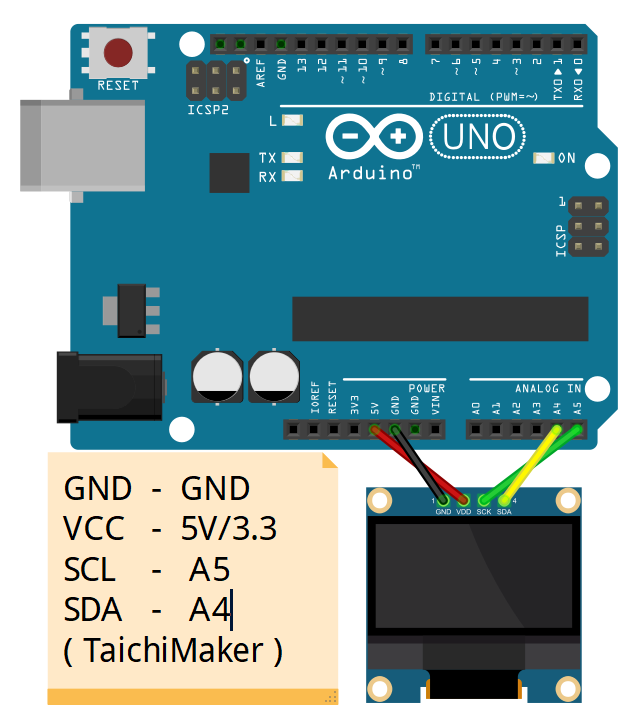

OLED0.96-uno连线图Arduino OLED0.96 屏幕模块太极创客

示例程序

/**********************************************************************
  程序名称/Program name     : words_display
  团队/Team                 : 太极创客团队 / Taichi-Maker (www.taichi-maker.com)
  作者/Author               : Dapenson
  日期/Date（YYYYMMDD）     : 2020/07/01
  程序目的/Purpose          :
  使用OLED0.96 IIC 12864显示文字
  -----------------------------------------------------------------------
  修订历史/Revision History
  日期/Date    作者/Author      参考号/Ref    修订说明/Revision Description
  -----------------------------------------------------------------------
  其它说明：
***********************************************************************/

// 引入IIC通讯所需的Wire库文件
// 教程参考http://www.taichi-maker.com/homepage/reference-index/arduino-library-index/wire-library/
#include <Wire.h>

// 引入驱动OLED0.96所需的库
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define SCREEN_WIDTH 128 // 设置OLED宽度,单位:像素
#define SCREEN_HEIGHT 64 // 设置OLED高度,单位:像素

// 自定义重置引脚,虽然教程未使用,但却是Adafruit_SSD1306库文件所必需的
#define OLED_RESET 4
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

void setup()
{
  // 初始化Wire库
  //  Wire.begin();

  // 初始化OLED并设置其IIC地址为 0x3C
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
}

void loop()
{
  words_display();
  display.display();
}

void words_display()
{
  // 清除屏幕
  display.clearDisplay();

  // 设置字体颜色,白色可见
  display.setTextColor(WHITE);

  //设置字体大小
  display.setTextSize(1.5);

  //设置光标位置
  display.setCursor(0, 0);
  display.print("TaichiMaker");

  display.setCursor(0, 20);
  display.print("time: ");
  //打印自开发板重置以来的秒数：
  display.print(millis() / 1000);
  display.print(" s");

  display.setCursor(0, 40);
  display.print("Author: ");
  display.print("Dapenson");
}

/**********************************************************************

程序名称/Program name : words_display

团队/Team : 太极创客团队 / Taichi-Maker (www.taichi-maker.com)

作者/Author : Dapenson

日期/Date（YYYYMMDD） : 2020/07/01

程序目的/Purpose :

使用OLED0.96 IIC 12864显示文字

-----------------------------------------------------------------------

修订历史/Revision History

日期/Date 作者/Author 参考号/Ref 修订说明/Revision Description

-----------------------------------------------------------------------

其它说明：

***********************************************************************/

// 引入IIC通讯所需的Wire库文件

// 教程参考http://www.taichi-maker.com/homepage/reference-index/arduino-library-index/wire-library/

#include <Wire.h>

// 引入驱动OLED0.96所需的库

#include <Adafruit_GFX.h>

#include <Adafruit_SSD1306.h>

#define SCREEN_WIDTH 128 // 设置OLED宽度,单位:像素

#define SCREEN_HEIGHT 64 // 设置OLED高度,单位:像素

// 自定义重置引脚,虽然教程未使用,但却是Adafruit_SSD1306库文件所必需的

#define OLED_RESET 4

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

void setup()

{

// 初始化Wire库

// Wire.begin();

// 初始化OLED并设置其IIC地址为 0x3C

display.begin(SSD1306_SWITCHCAPVCC, 0x3C);

}

void loop()

{

words_display();

display.display();

}

void words_display()

{

// 清除屏幕

display.clearDisplay();

// 设置字体颜色,白色可见

display.setTextColor(WHITE);

//设置字体大小

display.setTextSize(1.5);

//设置光标位置

display.setCursor(0, 0);

display.print("TaichiMaker");

display.setCursor(0, 20);

display.print("time: ");

//打印自开发板重置以来的秒数：

display.print(millis() / 1000);

display.print(" s");

display.setCursor(0, 40);

display.print("Author: ");

display.print("Dapenson");

}

效果演示

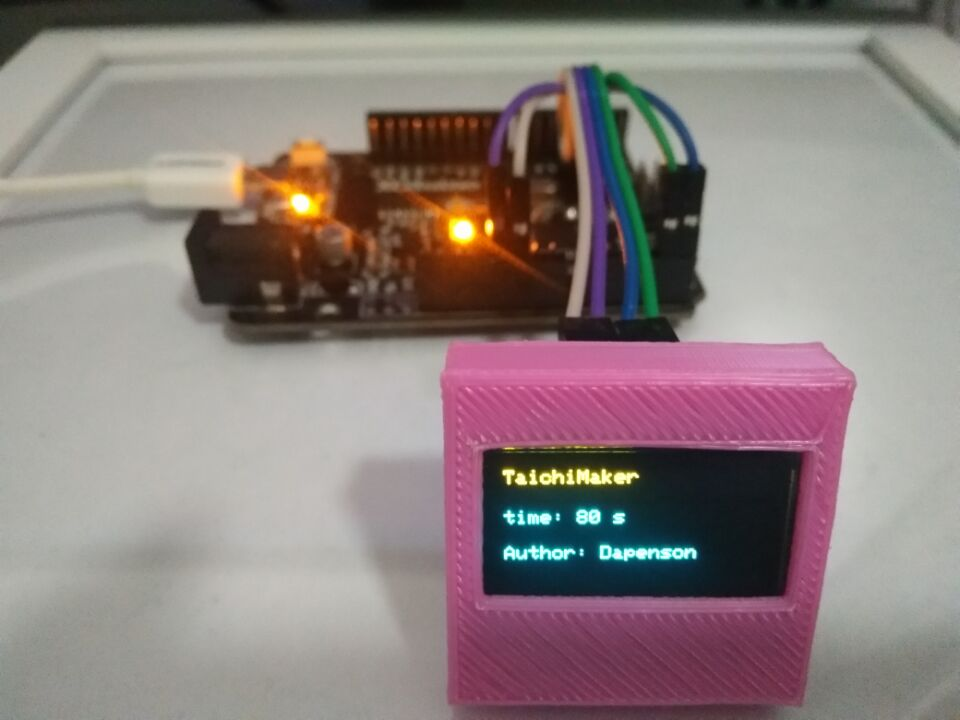

OLED0.96文字显示Arduino OLED0.96 屏幕模块太极创客

2 OLED显示汉字

汉字的显示需要对文字进行取模操作,紧接着使用drawBitmap()函数对取模生成的数组进行显示

汉字取模

1 打开取模软件,切换到字符模式

OLED0.96文字取模Arduino OLED0.96 屏幕模块太极创客 — OLED0.96文字取模Arduino

2 在菜单栏区设置字体和尺寸选择

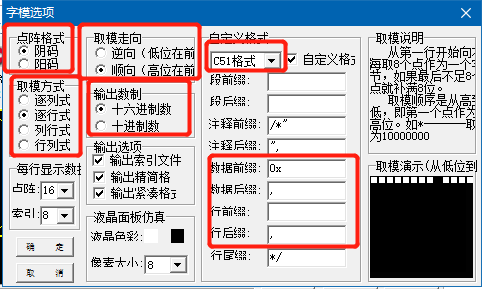

3 字模选项设置,设置之后点击确定按钮

OLED0.96文字取模Arduino OLED0.96 屏幕模块太极创客

4 输入字符,点击生成子模, 生成之后需要对生成的数据进行变量赋值和加工,具体格式参考示例程序

电路连接

OLED0.96-uno连线图Arduino OLED0.96 屏幕模块太极创客

示例程序

hans_display.ino

/**********************************************************************
  程序名称/Program name     : hans_display
  团队/Team                 : 太极创客团队 / Taichi-Maker (www.taichi-maker.com)
  作者/Author               : Dapenson
  日期/Date（YYYYMMDD）     : 2020/07/01
  程序目的/Purpose          :
  使用OLED0.96 IIC 12864显示汉字
  -----------------------------------------------------------------------
  修订历史/Revision History
  日期/Date    作者/Author      参考号/Ref    修订说明/Revision Description
  -----------------------------------------------------------------------
  其它说明：
***********************************************************************/

// 引入IIC通讯所需的Wire库文件
// 教程参考http://www.taichi-maker.com/homepage/reference-index/arduino-library-index/wire-library/
#include <Wire.h>

#include "text.h"

// 引入驱动OLED0.96所需的库
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define SCREEN_WIDTH 128 // 设置OLED宽度,单位:像素
#define SCREEN_HEIGHT 64 // 设置OLED高度,单位:像素

// 自定义重置引脚,虽然教程未使用,但却是Adafruit_SSD1306库文件所必需的
#define OLED_RESET 4
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

void setup()
{
    // 初始化OLED并设置其IIC地址为 0x3C
    display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
}

void loop()
{
    hans_display_0();
    hans_display_1();
}

void hans_display_0(void)
{
    // 显示之前清屏
    display.clearDisplay();

    // 显示文字 (左上角x坐标,左上角y坐标, 图形数组, 图形宽度像素点, 图形高度像素点, 设置颜色)
    display.drawBitmap(20 * 1, 16, hans_tai, 16, 16, 1);
    display.drawBitmap(20 * 2, 16, hans_ji, 16, 16, 1);
    display.drawBitmap(20 * 3, 16, hans_chuang, 16, 16, 1);
    display.drawBitmap(20 * 4, 16, hans_ke, 16, 16, 1);

    //显示图形
    display.display();
    delay(2000);
}

void hans_display_1(void)
{
    // 显示之前清屏
    display.clearDisplay();

    // 显示文字 (左上角x坐标,右上角y坐标, 图形数组, 图形宽度像素点, 图形高度像素点, 设置颜色)
    display.drawBitmap(20 * 1, 16, hans_tai1, 32, 32, 1);
    display.drawBitmap(20 * 2, 16, hans_ji1, 32, 32, 1);
    display.drawBitmap(20 * 3, 16, hans_chuang1, 32, 32, 1);
    display.drawBitmap(20 * 4, 16, hans_ke1, 32, 32, 1);

    //显示图形
    display.display();
    delay(2000);
}

/**********************************************************************

程序名称/Program name : hans_display

团队/Team : 太极创客团队 / Taichi-Maker (www.taichi-maker.com)

作者/Author : Dapenson

日期/Date（YYYYMMDD） : 2020/07/01

程序目的/Purpose :

使用OLED0.96 IIC 12864显示汉字

-----------------------------------------------------------------------

修订历史/Revision History

日期/Date 作者/Author 参考号/Ref 修订说明/Revision Description

-----------------------------------------------------------------------

其它说明：

***********************************************************************/

// 引入IIC通讯所需的Wire库文件

// 教程参考http://www.taichi-maker.com/homepage/reference-index/arduino-library-index/wire-library/

#include <Wire.h>

#include "text.h"

// 引入驱动OLED0.96所需的库

#include <Adafruit_GFX.h>

#include <Adafruit_SSD1306.h>

#define SCREEN_WIDTH 128 // 设置OLED宽度,单位:像素

#define SCREEN_HEIGHT 64 // 设置OLED高度,单位:像素

// 自定义重置引脚,虽然教程未使用,但却是Adafruit_SSD1306库文件所必需的

#define OLED_RESET 4

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

void setup()

{

// 初始化OLED并设置其IIC地址为 0x3C

display.begin(SSD1306_SWITCHCAPVCC, 0x3C);

}

void loop()

{

hans_display_0();

hans_display_1();

}

void hans_display_0(void)

{

// 显示之前清屏

display.clearDisplay();

// 显示文字 (左上角x坐标,左上角y坐标, 图形数组, 图形宽度像素点, 图形高度像素点, 设置颜色)

display.drawBitmap(20 * 1, 16, hans_tai, 16, 16, 1);

display.drawBitmap(20 * 2, 16, hans_ji, 16, 16, 1);

display.drawBitmap(20 * 3, 16, hans_chuang, 16, 16, 1);

display.drawBitmap(20 * 4, 16, hans_ke, 16, 16, 1);

//显示图形

display.display();

delay(2000);

}

void hans_display_1(void)

{

// 显示之前清屏

display.clearDisplay();

// 显示文字 (左上角x坐标,右上角y坐标, 图形数组, 图形宽度像素点, 图形高度像素点, 设置颜色)

display.drawBitmap(20 * 1, 16, hans_tai1, 32, 32, 1);

display.drawBitmap(20 * 2, 16, hans_ji1, 32, 32, 1);

display.drawBitmap(20 * 3, 16, hans_chuang1, 32, 32, 1);

display.drawBitmap(20 * 4, 16, hans_ke1, 32, 32, 1);

//显示图形

display.display();

delay(2000);

}

text.h

static const unsigned char PROGMEM hans_tai[] = {
    0x01, 0x00, 0x01, 0x00, 0x01, 0x00, 0x01, 0x00, 0x01, 0x00, 0xFF, 0xFE, 0x01, 0x00, 0x01, 0x00,
    0x02, 0x80, 0x02, 0x80, 0x04, 0x40, 0x04, 0x40, 0x0A, 0x20, 0x11, 0x10, 0x21, 0x08, 0xC0, 0x06 /*"太",0*/
};

static const unsigned char PROGMEM hans_ji[] = {
    0x10, 0x00, 0x13, 0xFC, 0x10, 0x84, 0x10, 0x88, 0xFC, 0x88, 0x10, 0x90, 0x30, 0x9C, 0x38, 0x84,
    0x55, 0x44, 0x55, 0x44, 0x91, 0x28, 0x11, 0x28, 0x12, 0x10, 0x12, 0x28, 0x14, 0x44, 0x11, 0x82}; /*极",1*/

static const unsigned char PROGMEM hans_chuang[] = {
    0x08, 0x04, 0x08, 0x04, 0x14, 0x04, 0x12, 0x24, 0x21, 0x24, 0x40, 0xA4, 0xBE, 0x24, 0x22, 0x24,
    0x22, 0x24, 0x22, 0x24, 0x2A, 0x24, 0x24, 0x24, 0x20, 0x84, 0x20, 0x84, 0x1F, 0x94, 0x00, 0x08}; /*"创",2*/

static const unsigned char PROGMEM hans_ke[] = {
    0x02, 0x00, 0x01, 0x00, 0x7F, 0xFE, 0x40, 0x02, 0x88, 0x04, 0x0F, 0xF0, 0x10, 0x20, 0x2C, 0x40,
    0x03, 0x80, 0x1C, 0x70, 0xE0, 0x0E, 0x1F, 0xF0, 0x10, 0x10, 0x10, 0x10, 0x1F, 0xF0, 0x10, 0x10}; /*"客",3*/

static const unsigned char PROGMEM hans_tai1[] = {
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x60, 0x00, 0x00, 0x00, 0x30, 0x00, 0x00, 0x00, 0x30, 0x00, 0x00, 0x00, 0x30, 0x00, 0x00,
    0x00, 0x33, 0x00, 0x00, 0x00, 0x2F, 0x00, 0x00, 0x00, 0x3F, 0x80, 0x00, 0x00, 0x69, 0x00, 0x00,
    0x02, 0xB0, 0x00, 0x00, 0x03, 0x60, 0x00, 0x00, 0x00, 0x60, 0x00, 0x00, 0x00, 0x51, 0x00, 0x00,
    0x00, 0x59, 0x00, 0x00, 0x00, 0x8D, 0x00, 0x00, 0x00, 0x8F, 0x00, 0x00, 0x01, 0xA7, 0x00, 0x00,
    0x01, 0x3B, 0x00, 0x00, 0x06, 0x3B, 0x80, 0x00, 0x00, 0x13, 0xC0, 0x00, 0x00, 0x01, 0xC0, 0x00,
    0x00, 0x01, 0xE0, 0x00, 0x00, 0x00, 0xE0, 0x00, 0x00, 0x00, 0x40, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}; /*"太",0*/

static const unsigned char PROGMEM hans_ji1[] = {

    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x40, 0x80, 0x00, 0x00, 0x41, 0x00, 0x00, 0x00, 0x63, 0x00, 0x00,
    0x00, 0x66, 0x00, 0x00, 0x00, 0xCA, 0x00, 0x00, 0x01, 0xFA, 0xC0, 0x00, 0x02, 0xAD, 0xC0, 0x00,
    0x0C, 0xD7, 0xC0, 0x00, 0x09, 0xD4, 0xC0, 0x00, 0x01, 0xD0, 0xC0, 0x00, 0x02, 0xD8, 0xC0, 0x00,
    0x03, 0xE5, 0xC0, 0x00, 0x07, 0xA7, 0x80, 0x00, 0x05, 0xA3, 0x80, 0x00, 0x05, 0xB7, 0xA0, 0x00,
    0x0D, 0xAF, 0xC0, 0x00, 0x00, 0xE7, 0xC0, 0x00, 0x00, 0x03, 0xE0, 0x00, 0x00, 0x02, 0x70, 0x00,
    0x00, 0x00, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}; /*"极",1*/

static const unsigned char PROGMEM hans_chuang1[] = {

    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x60, 0x00, 0x00, 0x00, 0x20, 0x20, 0x00, 0x00, 0x60, 0x20, 0x00, 0x00, 0x60, 0x60, 0x00,
    0x00, 0x40, 0x40, 0x00, 0x00, 0xD8, 0xC0, 0x00, 0x00, 0xB8, 0xC0, 0x00, 0x01, 0x61, 0x40, 0x00,
    0x01, 0xD1, 0x40, 0x00, 0x02, 0x35, 0x40, 0x00, 0x02, 0x72, 0x40, 0x00, 0x04, 0xB2, 0x40, 0x00,
    0x05, 0x36, 0x40, 0x00, 0x03, 0xB6, 0x40, 0x00, 0x00, 0xEC, 0x40, 0x00, 0x00, 0xEC, 0x40, 0x00,
    0x00, 0xF4, 0x40, 0x00, 0x01, 0x34, 0x40, 0x00, 0x01, 0x70, 0xE0, 0x00, 0x01, 0xEF, 0xE0, 0x00,
    0x01, 0xC1, 0xC0, 0x00, 0x00, 0x80, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}; /*"创",2*/

static const unsigned char PROGMEM hans_ke1[] = {

    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x78, 0x00, 0x00, 0x00, 0x38, 0x00, 0x00, 0x00, 0x28, 0x00, 0x00,
    0x00, 0x47, 0x00, 0x00, 0x00, 0x8F, 0x00, 0x00, 0x00, 0x96, 0x00, 0x00, 0x00, 0xAC, 0x00, 0x00,
    0x01, 0x7C, 0x00, 0x00, 0x01, 0xD4, 0x00, 0x00, 0x01, 0x68, 0x00, 0x00, 0x00, 0xD9, 0x80, 0x00,
    0x02, 0x9F, 0xE0, 0x00, 0x01, 0xFF, 0xE0, 0x00, 0x00, 0x5F, 0xC0, 0x00, 0x00, 0xB6, 0x00, 0x00,
    0x07, 0x6E, 0x00, 0x00, 0x00, 0xCC, 0x00, 0x00, 0x00, 0xDF, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00,
    0x00, 0xFF, 0x00, 0x00, 0x00, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}; /*"客",3*/

static const unsigned char PROGMEM hans_tai[] = {

0x01, 0x00, 0x01, 0x00, 0x01, 0x00, 0x01, 0x00, 0x01, 0x00, 0xFF, 0xFE, 0x01, 0x00, 0x01, 0x00,

0x02, 0x80, 0x02, 0x80, 0x04, 0x40, 0x04, 0x40, 0x0A, 0x20, 0x11, 0x10, 0x21, 0x08, 0xC0, 0x06 /*"太",0*/

};

static const unsigned char PROGMEM hans_ji[] = {

0x10, 0x00, 0x13, 0xFC, 0x10, 0x84, 0x10, 0x88, 0xFC, 0x88, 0x10, 0x90, 0x30, 0x9C, 0x38, 0x84,

0x55, 0x44, 0x55, 0x44, 0x91, 0x28, 0x11, 0x28, 0x12, 0x10, 0x12, 0x28, 0x14, 0x44, 0x11, 0x82}; /*极",1*/

static const unsigned char PROGMEM hans_chuang[] = {

0x08, 0x04, 0x08, 0x04, 0x14, 0x04, 0x12, 0x24, 0x21, 0x24, 0x40, 0xA4, 0xBE, 0x24, 0x22, 0x24,

0x22, 0x24, 0x22, 0x24, 0x2A, 0x24, 0x24, 0x24, 0x20, 0x84, 0x20, 0x84, 0x1F, 0x94, 0x00, 0x08}; /*"创",2*/

static const unsigned char PROGMEM hans_ke[] = {

0x02, 0x00, 0x01, 0x00, 0x7F, 0xFE, 0x40, 0x02, 0x88, 0x04, 0x0F, 0xF0, 0x10, 0x20, 0x2C, 0x40,

0x03, 0x80, 0x1C, 0x70, 0xE0, 0x0E, 0x1F, 0xF0, 0x10, 0x10, 0x10, 0x10, 0x1F, 0xF0, 0x10, 0x10}; /*"客",3*/

static const unsigned char PROGMEM hans_tai1[] = {

0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

0x00, 0x60, 0x00, 0x00, 0x00, 0x30, 0x00, 0x00, 0x00, 0x30, 0x00, 0x00, 0x00, 0x30, 0x00, 0x00,

0x00, 0x33, 0x00, 0x00, 0x00, 0x2F, 0x00, 0x00, 0x00, 0x3F, 0x80, 0x00, 0x00, 0x69, 0x00, 0x00,

0x02, 0xB0, 0x00, 0x00, 0x03, 0x60, 0x00, 0x00, 0x00, 0x60, 0x00, 0x00, 0x00, 0x51, 0x00, 0x00,

0x00, 0x59, 0x00, 0x00, 0x00, 0x8D, 0x00, 0x00, 0x00, 0x8F, 0x00, 0x00, 0x01, 0xA7, 0x00, 0x00,

0x01, 0x3B, 0x00, 0x00, 0x06, 0x3B, 0x80, 0x00, 0x00, 0x13, 0xC0, 0x00, 0x00, 0x01, 0xC0, 0x00,

0x00, 0x01, 0xE0, 0x00, 0x00, 0x00, 0xE0, 0x00, 0x00, 0x00, 0x40, 0x00, 0x00, 0x00, 0x00, 0x00,

0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}; /*"太",0*/

static const unsigned char PROGMEM hans_ji1[] = {

0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

0x00, 0x00, 0x00, 0x00, 0x00, 0x40, 0x80, 0x00, 0x00, 0x41, 0x00, 0x00, 0x00, 0x63, 0x00, 0x00,

0x00, 0x66, 0x00, 0x00, 0x00, 0xCA, 0x00, 0x00, 0x01, 0xFA, 0xC0, 0x00, 0x02, 0xAD, 0xC0, 0x00,

0x0C, 0xD7, 0xC0, 0x00, 0x09, 0xD4, 0xC0, 0x00, 0x01, 0xD0, 0xC0, 0x00, 0x02, 0xD8, 0xC0, 0x00,

0x03, 0xE5, 0xC0, 0x00, 0x07, 0xA7, 0x80, 0x00, 0x05, 0xA3, 0x80, 0x00, 0x05, 0xB7, 0xA0, 0x00,

0x0D, 0xAF, 0xC0, 0x00, 0x00, 0xE7, 0xC0, 0x00, 0x00, 0x03, 0xE0, 0x00, 0x00, 0x02, 0x70, 0x00,

0x00, 0x00, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}; /*"极",1*/

static const unsigned char PROGMEM hans_chuang1[] = {

0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

0x00, 0x60, 0x00, 0x00, 0x00, 0x20, 0x20, 0x00, 0x00, 0x60, 0x20, 0x00, 0x00, 0x60, 0x60, 0x00,

0x00, 0x40, 0x40, 0x00, 0x00, 0xD8, 0xC0, 0x00, 0x00, 0xB8, 0xC0, 0x00, 0x01, 0x61, 0x40, 0x00,

0x01, 0xD1, 0x40, 0x00, 0x02, 0x35, 0x40, 0x00, 0x02, 0x72, 0x40, 0x00, 0x04, 0xB2, 0x40, 0x00,

0x05, 0x36, 0x40, 0x00, 0x03, 0xB6, 0x40, 0x00, 0x00, 0xEC, 0x40, 0x00, 0x00, 0xEC, 0x40, 0x00,

0x00, 0xF4, 0x40, 0x00, 0x01, 0x34, 0x40, 0x00, 0x01, 0x70, 0xE0, 0x00, 0x01, 0xEF, 0xE0, 0x00,

0x01, 0xC1, 0xC0, 0x00, 0x00, 0x80, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}; /*"创",2*/

static const unsigned char PROGMEM hans_ke1[] = {

0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

0x00, 0x00, 0x00, 0x00, 0x00, 0x78, 0x00, 0x00, 0x00, 0x38, 0x00, 0x00, 0x00, 0x28, 0x00, 0x00,

0x00, 0x47, 0x00, 0x00, 0x00, 0x8F, 0x00, 0x00, 0x00, 0x96, 0x00, 0x00, 0x00, 0xAC, 0x00, 0x00,

0x01, 0x7C, 0x00, 0x00, 0x01, 0xD4, 0x00, 0x00, 0x01, 0x68, 0x00, 0x00, 0x00, 0xD9, 0x80, 0x00,

0x02, 0x9F, 0xE0, 0x00, 0x01, 0xFF, 0xE0, 0x00, 0x00, 0x5F, 0xC0, 0x00, 0x00, 0xB6, 0x00, 0x00,

0x07, 0x6E, 0x00, 0x00, 0x00, 0xCC, 0x00, 0x00, 0x00, 0xDF, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00,

0x00, 0xFF, 0x00, 0x00, 0x00, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}; /*"客",3*/

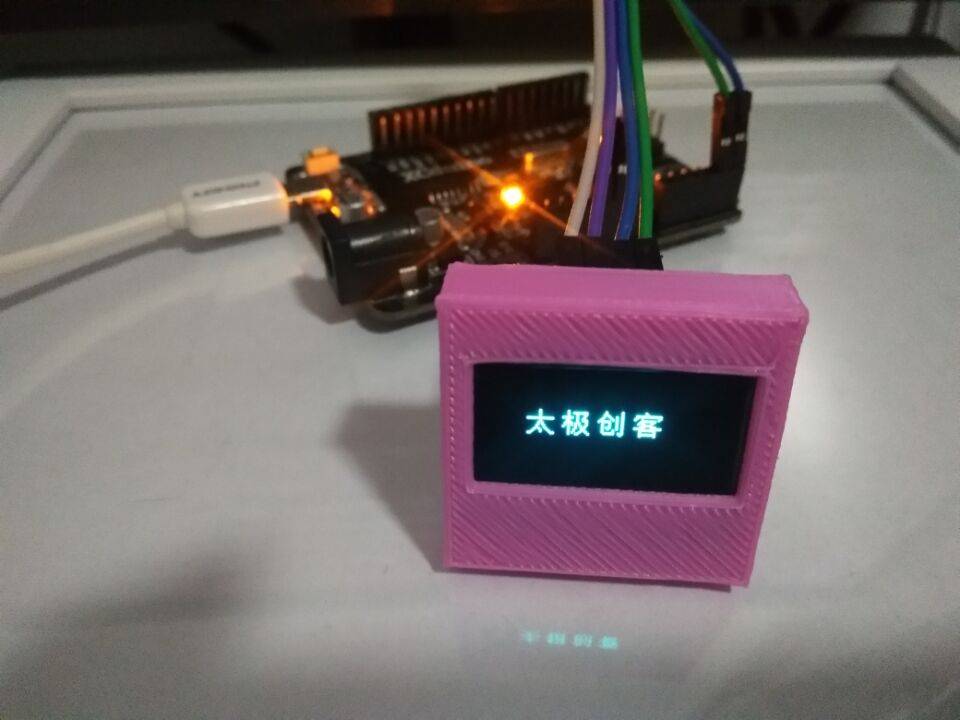

效果演示

OLED0.96汉字显示Arduino OLED0.96 屏幕模块太极创客

3 OLED显示图片

图片的显示需要对图片进行取模操作,再使用drawBitmap()函数对取模生成的数组进行显示,下面介绍如何对图片进行取模操作

图片取模

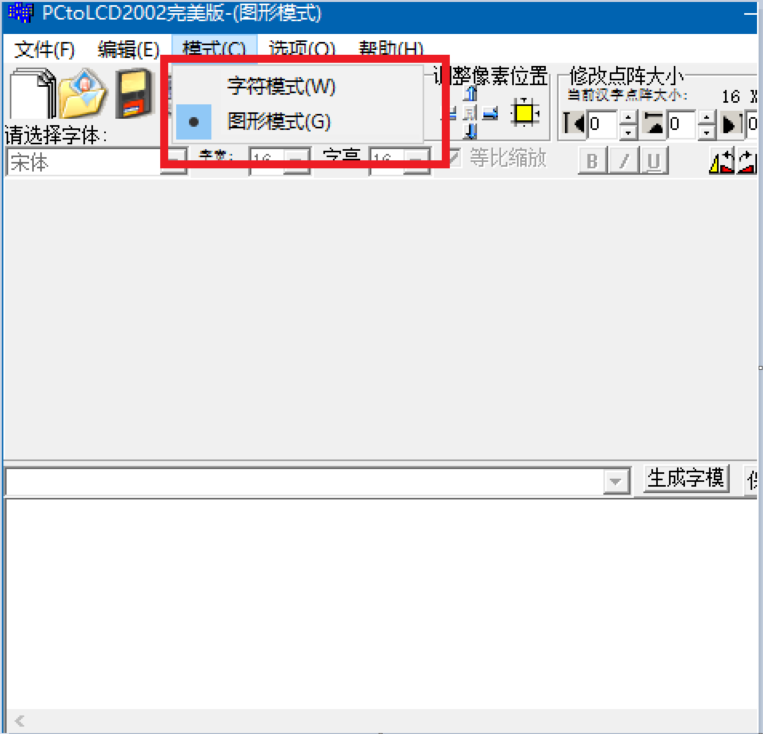

1 打开取模软件,切换到图形模式

OLED0.96图片取模Arduino OLED0.96 屏幕模块太极创客

2 打开图片或新建图片

图形模式有三种方法可以处理图片（如下图所示）
A、点击文件->打开，打开现有的BMP单色图片
B、点击打开图片按钮打开现有的BMP单色图片
C、点击新建图片按钮，设置宽度和高度，新建一幅单色BMP图片

OLED0.96图片取模Arduino OLED0.96 屏幕模块太极创客

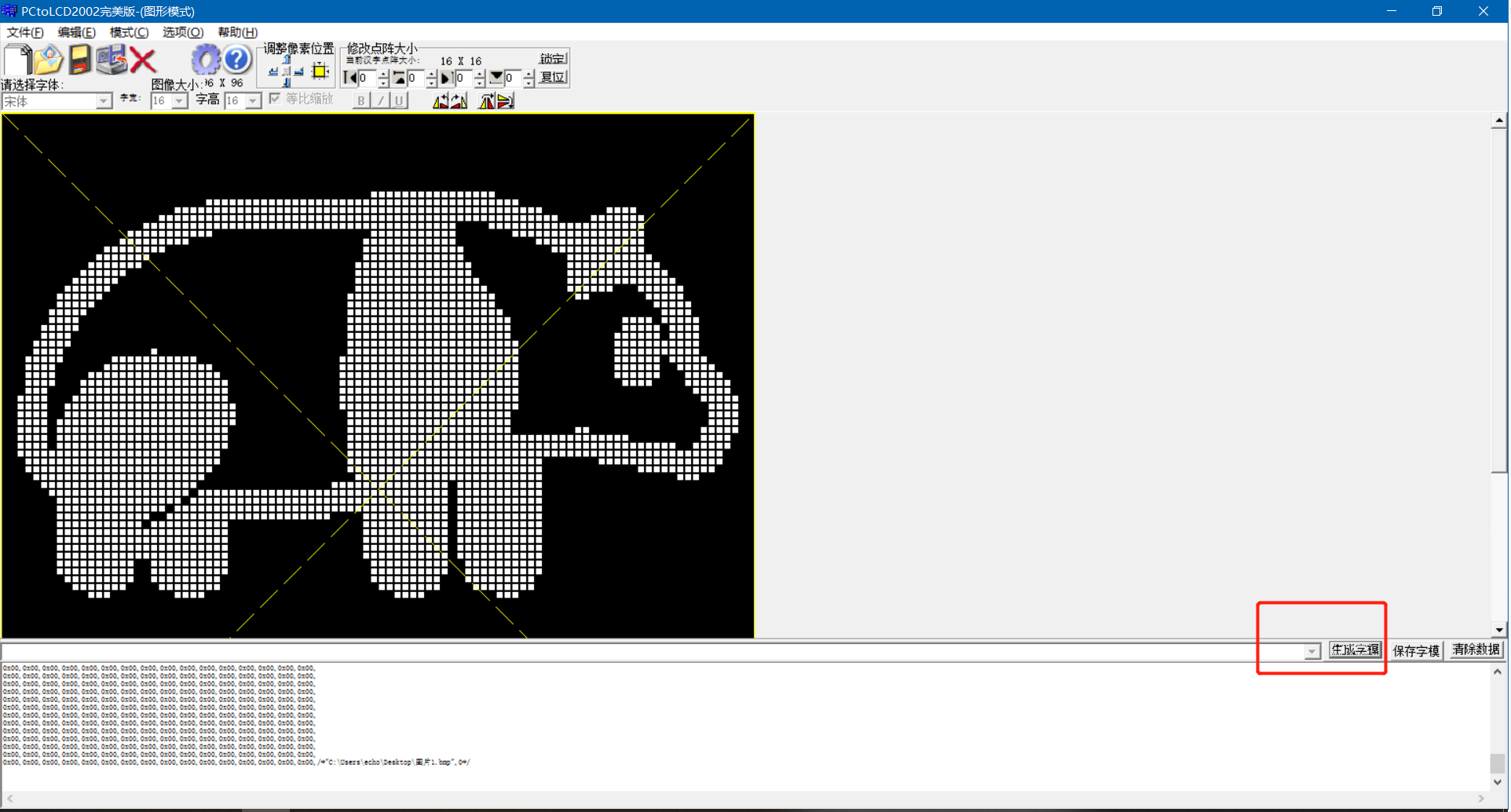

3 打开图片之后,点击生成子模,生成之后需要对生成的数据进行变量赋值和加工,具体格式参考示例程序

OLED0.96图片取模Arduino OLED0.96 屏幕模块太极创客

电路连接

OLED0.96-uno连线图Arduino OLED0.96 屏幕模块太极创客

示例程序

/**********************************************************************
  程序名称/Program name     : words_display
  团队/Team                 : 太极创客团队 / Taichi-Maker (www.taichi-maker.com)
  作者/Author               : Dapenson
  日期/Date（YYYYMMDD）     : 2020/07/01
  程序目的/Purpose          :
  使用OLED0.96 IIC 12864显示图片
  -----------------------------------------------------------------------
  修订历史/Revision History
  日期/Date    作者/Author      参考号/Ref    修订说明/Revision Description
  -----------------------------------------------------------------------
  其它说明：
***********************************************************************/

// 引入IIC通讯所需的Wire库文件
// 教程参考http://www.taichi-maker.com/homepage/reference-index/arduino-library-index/wire-library/
#include <Wire.h>

// 引入驱动OLED0.96所需的库
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define SCREEN_WIDTH 128 // 设置OLED宽度,单位:像素
#define SCREEN_HEIGHT 64 // 设置OLED高度,单位:像素

// 自定义重置引脚,虽然教程未使用,但却是Adafruit_SSD1306库文件所必需的
#define OLED_RESET 4
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

static const unsigned char PROGMEM panda_bmp[] =
    {
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x01,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xFF,0xFF,0xFF,
0xC0,0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xFF,0xFF,0xFF,0xFF,0xF8,0x07,0x80,0x00,
0x00,0x00,0x0F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFE,0x1F,0xC0,0x00,0x00,0x00,0x3F,0xFF,
0xFF,0xFF,0xFF,0xC3,0xFF,0xFF,0xC0,0x00,0x00,0x00,0xFF,0xE0,0x00,0x01,0xFF,0xC0,
0x7F,0xFF,0xC0,0x00,0x00,0x01,0xFF,0x00,0x00,0x03,0xFF,0xC0,0x0F,0xFF,0xC0,0x00,
0x00,0x07,0xF8,0x00,0x00,0x03,0xFF,0xE0,0x03,0xFF,0xC0,0x00,0x00,0x0F,0xE0,0x00,
0x00,0x03,0xFF,0xE0,0x00,0xFF,0xE0,0x00,0x00,0x1F,0xC0,0x00,0x00,0x07,0xFF,0xF0,
0x00,0xFF,0xF0,0x00,0x00,0x3F,0x00,0x00,0x00,0x07,0xFF,0xF0,0x00,0xFF,0xF8,0x00,
0x00,0x7E,0x00,0x00,0x00,0x07,0xFF,0xF8,0x00,0xFF,0xFC,0x00,0x00,0xFC,0x00,0x00,
0x00,0x07,0xFF,0xFC,0x00,0xFC,0x7E,0x00,0x01,0xF8,0x00,0x00,0x00,0x0F,0xFF,0xFE,
0x00,0x60,0x3E,0x00,0x01,0xF0,0x00,0x00,0x00,0x0F,0xFF,0xFE,0x00,0x00,0x1F,0x00,
0x03,0xE0,0x00,0x00,0x00,0x0F,0xFF,0xFF,0x00,0x00,0x0F,0x00,0x03,0xC0,0x00,0x00,
0x00,0x0F,0xFF,0xFF,0x80,0x01,0xEF,0x80,0x07,0xC0,0x00,0x00,0x00,0x0F,0xFF,0xFF,
0x80,0x01,0xF7,0x80,0x07,0x80,0x00,0x00,0x00,0x0F,0xFF,0xFF,0x80,0x03,0xF7,0x80,
0x0F,0x80,0x00,0x00,0x00,0x0F,0xFF,0xFF,0xC0,0x03,0xFF,0x80,0x0F,0x00,0x10,0x00,
0x00,0x0F,0xFF,0xFF,0xC0,0x03,0xFF,0x80,0x1F,0x03,0xFF,0x80,0x00,0x1F,0xFF,0xFF,
0xC0,0x03,0xF7,0xC0,0x1E,0x07,0xFF,0xE0,0x00,0x1F,0xFF,0xFF,0xC0,0x03,0xF3,0xE0,
0x1E,0x1F,0xFF,0xF0,0x00,0x1F,0xFF,0xFF,0xC0,0x03,0xF1,0xF0,0x1E,0x3F,0xFF,0xF8,
0x00,0x1F,0xFF,0xFF,0xC0,0x01,0xE1,0xF8,0x1C,0x3F,0xFF,0xF8,0x00,0x1F,0xFF,0xFF,
0xC0,0x00,0x00,0xF8,0x3C,0x7F,0xFF,0xF8,0x00,0x1F,0xFF,0xFF,0xC0,0x00,0x00,0x7C,
0x3C,0xFF,0xFF,0xFC,0x00,0x1F,0xFF,0xFF,0xC0,0x00,0x00,0x3C,0x3C,0xFF,0xFF,0xFC,
0x00,0x0F,0xFF,0xFF,0x80,0x00,0x00,0x3C,0x3D,0xFF,0xFF,0xFC,0x00,0x0F,0xFF,0xFF,
0x80,0x00,0x00,0x3C,0x3D,0xFF,0xFF,0xF8,0x00,0x0F,0xFF,0xFF,0x80,0x60,0x00,0x7C,
0x3D,0xFF,0xFF,0xF8,0x00,0x0F,0xFF,0xFF,0xFF,0xFF,0x00,0x78,0x3D,0xFF,0xFF,0xF8,
0x00,0x0F,0xFF,0xFF,0xFF,0xFF,0xFC,0xF8,0x3F,0xFF,0xFF,0xF0,0x00,0x0F,0xFF,0xFF,
0xFF,0xFF,0xFF,0xF0,0x1F,0xFF,0xFF,0xF0,0x00,0x0F,0xFF,0xFF,0xF8,0x0F,0xFF,0xF0,
0x1F,0xFF,0xFF,0xE0,0x00,0x0F,0xFF,0xFF,0xF8,0x00,0x7F,0xE0,0x0F,0xFF,0xFF,0xC0,
0x00,0x07,0xFF,0xFF,0xF8,0x00,0x03,0x80,0x07,0xFF,0xFF,0x80,0x00,0x3F,0xFF,0xBF,
0xF8,0x00,0x00,0x00,0x03,0xFF,0xFF,0x7F,0xFF,0xFF,0xFF,0xBF,0xF8,0x00,0x00,0x00,
0x01,0xFF,0xFE,0xFF,0xFF,0xFF,0xFF,0xBF,0xF8,0x00,0x00,0x00,0x01,0xFF,0xFB,0xFF,
0xFF,0xFF,0xFF,0xBF,0xF8,0x00,0x00,0x00,0x01,0xFF,0xE7,0xFF,0xFF,0xC3,0xFF,0xBF,
0xF8,0x00,0x00,0x00,0x01,0xFF,0xDF,0xF8,0x00,0x03,0xFF,0xBF,0xF8,0x00,0x00,0x00,
0x01,0xFF,0xFF,0xF8,0x00,0x03,0xFF,0xBF,0xF8,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF8,
0x00,0x03,0xFF,0xBF,0xF8,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF8,0x00,0x03,0xFF,0xBF,
0xF8,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF8,0x00,0x03,0xFF,0xBF,0xF8,0x00,0x00,0x00,
0x01,0xFF,0x9F,0xF8,0x00,0x01,0xFF,0x9F,0xF8,0x00,0x00,0x00,0x01,0xFF,0x9F,0xF8,
0x00,0x01,0xFF,0x9F,0xF8,0x00,0x00,0x00,0x00,0xFF,0x9F,0xF0,0x00,0x01,0xFF,0x1F,
0xF0,0x00,0x00,0x00,0x00,0x7F,0x0F,0xF0,0x00,0x00,0xFF,0x0F,0xF0,0x00,0x00,0x00,
0x00,0x1C,0x03,0xC0,0x00,0x00,0x3C,0x01,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00};

void setup()
{
    // 初始化OLED并设置其IIC地址为 0x3C
    display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
}

void loop()
{
    bmp_display();
}

void bmp_display(void)
{
    // 显示前清屏
    display.clearDisplay();

    // 将图片显示在中心位置
    display.drawBitmap(0,0,panda_bmp, 96, 96, 1);

    // 将内容显示到屏幕
    display.display();

    delay(1000);
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

/**********************************************************************

程序名称/Program name : words_display

团队/Team : 太极创客团队 / Taichi-Maker (www.taichi-maker.com)

作者/Author : Dapenson

日期/Date（YYYYMMDD） : 2020/07/01

程序目的/Purpose :

使用OLED0.96 IIC 12864显示图片

-----------------------------------------------------------------------

修订历史/Revision History

日期/Date 作者/Author 参考号/Ref 修订说明/Revision Description

-----------------------------------------------------------------------

其它说明：

***********************************************************************/

// 引入IIC通讯所需的Wire库文件

// 教程参考http://www.taichi-maker.com/homepage/reference-index/arduino-library-index/wire-library/

#include <Wire.h>

// 引入驱动OLED0.96所需的库

#include <Adafruit_GFX.h>

#include <Adafruit_SSD1306.h>

#define SCREEN_WIDTH 128 // 设置OLED宽度,单位:像素

#define SCREEN_HEIGHT 64 // 设置OLED高度,单位:像素

// 自定义重置引脚,虽然教程未使用,但却是Adafruit_SSD1306库文件所必需的

#define OLED_RESET 4

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

static const unsigned char PROGMEM panda_bmp[] =

{

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x01,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xFF,0xFF,0xFF,

0xC0,0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xFF,0xFF,0xFF,0xFF,0xF8,0x07,0x80,0x00,

0x00,0x00,0x0F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFE,0x1F,0xC0,0x00,0x00,0x00,0x3F,0xFF,

0xFF,0xFF,0xFF,0xC3,0xFF,0xFF,0xC0,0x00,0x00,0x00,0xFF,0xE0,0x00,0x01,0xFF,0xC0,

0x7F,0xFF,0xC0,0x00,0x00,0x01,0xFF,0x00,0x00,0x03,0xFF,0xC0,0x0F,0xFF,0xC0,0x00,

0x00,0x07,0xF8,0x00,0x00,0x03,0xFF,0xE0,0x03,0xFF,0xC0,0x00,0x00,0x0F,0xE0,0x00,

0x00,0x03,0xFF,0xE0,0x00,0xFF,0xE0,0x00,0x00,0x1F,0xC0,0x00,0x00,0x07,0xFF,0xF0,

0x00,0xFF,0xF0,0x00,0x00,0x3F,0x00,0x00,0x00,0x07,0xFF,0xF0,0x00,0xFF,0xF8,0x00,

0x00,0x7E,0x00,0x00,0x00,0x07,0xFF,0xF8,0x00,0xFF,0xFC,0x00,0x00,0xFC,0x00,0x00,

0x00,0x07,0xFF,0xFC,0x00,0xFC,0x7E,0x00,0x01,0xF8,0x00,0x00,0x00,0x0F,0xFF,0xFE,

0x00,0x60,0x3E,0x00,0x01,0xF0,0x00,0x00,0x00,0x0F,0xFF,0xFE,0x00,0x00,0x1F,0x00,

0x03,0xE0,0x00,0x00,0x00,0x0F,0xFF,0xFF,0x00,0x00,0x0F,0x00,0x03,0xC0,0x00,0x00,

0x00,0x0F,0xFF,0xFF,0x80,0x01,0xEF,0x80,0x07,0xC0,0x00,0x00,0x00,0x0F,0xFF,0xFF,

0x80,0x01,0xF7,0x80,0x07,0x80,0x00,0x00,0x00,0x0F,0xFF,0xFF,0x80,0x03,0xF7,0x80,

0x0F,0x80,0x00,0x00,0x00,0x0F,0xFF,0xFF,0xC0,0x03,0xFF,0x80,0x0F,0x00,0x10,0x00,

0x00,0x0F,0xFF,0xFF,0xC0,0x03,0xFF,0x80,0x1F,0x03,0xFF,0x80,0x00,0x1F,0xFF,0xFF,

0xC0,0x03,0xF7,0xC0,0x1E,0x07,0xFF,0xE0,0x00,0x1F,0xFF,0xFF,0xC0,0x03,0xF3,0xE0,

0x1E,0x1F,0xFF,0xF0,0x00,0x1F,0xFF,0xFF,0xC0,0x03,0xF1,0xF0,0x1E,0x3F,0xFF,0xF8,

0x00,0x1F,0xFF,0xFF,0xC0,0x01,0xE1,0xF8,0x1C,0x3F,0xFF,0xF8,0x00,0x1F,0xFF,0xFF,

0xC0,0x00,0x00,0xF8,0x3C,0x7F,0xFF,0xF8,0x00,0x1F,0xFF,0xFF,0xC0,0x00,0x00,0x7C,

0x3C,0xFF,0xFF,0xFC,0x00,0x1F,0xFF,0xFF,0xC0,0x00,0x00,0x3C,0x3C,0xFF,0xFF,0xFC,

0x00,0x0F,0xFF,0xFF,0x80,0x00,0x00,0x3C,0x3D,0xFF,0xFF,0xFC,0x00,0x0F,0xFF,0xFF,

0x80,0x00,0x00,0x3C,0x3D,0xFF,0xFF,0xF8,0x00,0x0F,0xFF,0xFF,0x80,0x60,0x00,0x7C,

0x3D,0xFF,0xFF,0xF8,0x00,0x0F,0xFF,0xFF,0xFF,0xFF,0x00,0x78,0x3D,0xFF,0xFF,0xF8,

0x00,0x0F,0xFF,0xFF,0xFF,0xFF,0xFC,0xF8,0x3F,0xFF,0xFF,0xF0,0x00,0x0F,0xFF,0xFF,

0xFF,0xFF,0xFF,0xF0,0x1F,0xFF,0xFF,0xF0,0x00,0x0F,0xFF,0xFF,0xF8,0x0F,0xFF,0xF0,

0x1F,0xFF,0xFF,0xE0,0x00,0x0F,0xFF,0xFF,0xF8,0x00,0x7F,0xE0,0x0F,0xFF,0xFF,0xC0,

0x00,0x07,0xFF,0xFF,0xF8,0x00,0x03,0x80,0x07,0xFF,0xFF,0x80,0x00,0x3F,0xFF,0xBF,

0xF8,0x00,0x00,0x00,0x03,0xFF,0xFF,0x7F,0xFF,0xFF,0xFF,0xBF,0xF8,0x00,0x00,0x00,

0x01,0xFF,0xFE,0xFF,0xFF,0xFF,0xFF,0xBF,0xF8,0x00,0x00,0x00,0x01,0xFF,0xFB,0xFF,

0xFF,0xFF,0xFF,0xBF,0xF8,0x00,0x00,0x00,0x01,0xFF,0xE7,0xFF,0xFF,0xC3,0xFF,0xBF,

0xF8,0x00,0x00,0x00,0x01,0xFF,0xDF,0xF8,0x00,0x03,0xFF,0xBF,0xF8,0x00,0x00,0x00,

0x01,0xFF,0xFF,0xF8,0x00,0x03,0xFF,0xBF,0xF8,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF8,

0x00,0x03,0xFF,0xBF,0xF8,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF8,0x00,0x03,0xFF,0xBF,

0xF8,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF8,0x00,0x03,0xFF,0xBF,0xF8,0x00,0x00,0x00,

0x01,0xFF,0x9F,0xF8,0x00,0x01,0xFF,0x9F,0xF8,0x00,0x00,0x00,0x01,0xFF,0x9F,0xF8,

0x00,0x01,0xFF,0x9F,0xF8,0x00,0x00,0x00,0x00,0xFF,0x9F,0xF0,0x00,0x01,0xFF,0x1F,

0xF0,0x00,0x00,0x00,0x00,0x7F,0x0F,0xF0,0x00,0x00,0xFF,0x0F,0xF0,0x00,0x00,0x00,

0x00,0x1C,0x03,0xC0,0x00,0x00,0x3C,0x01,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00};

void setup()

{

// 初始化OLED并设置其IIC地址为 0x3C

display.begin(SSD1306_SWITCHCAPVCC, 0x3C);

}

void loop()

{

bmp_display();

}

void bmp_display(void)

{

// 显示前清屏

display.clearDisplay();

// 将图片显示在中心位置

display.drawBitmap(0,0,panda_bmp, 96, 96, 1);

// 将内容显示到屏幕

display.display();

delay(1000);

}

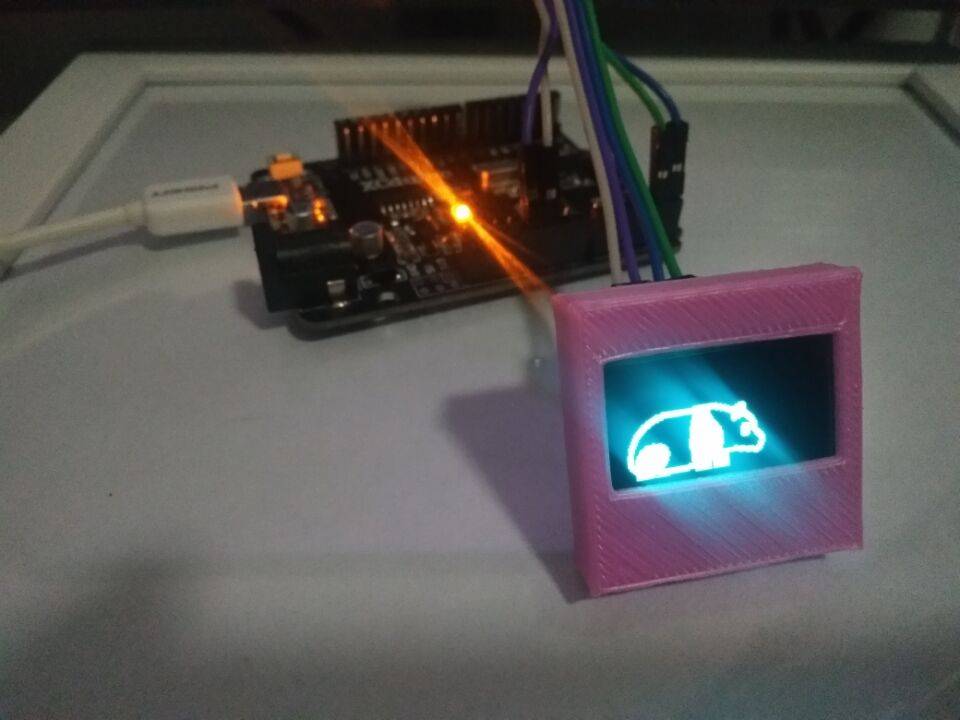

效果演示

OLED0.96图片显示Arduino OLED0.96 屏幕模块太极创客

Arduino驱动OLED屏幕

OLED 屏幕应用

前言

模块介绍

模块参数

模块尺寸

接口定义

Arduino控制OLED

1 OLED显示文字

电路连接

示例程序

效果演示

2 OLED显示汉字

汉字取模

电路连接

示例程序

效果演示

3 OLED显示图片

图片取模

电路连接

示例程序

效果演示

相关资源

1 取模软件PCtoLCD2002下载地址

2 IIC设备扫描获取地址
