Arduino驱动TCS230 颜色传感器模块

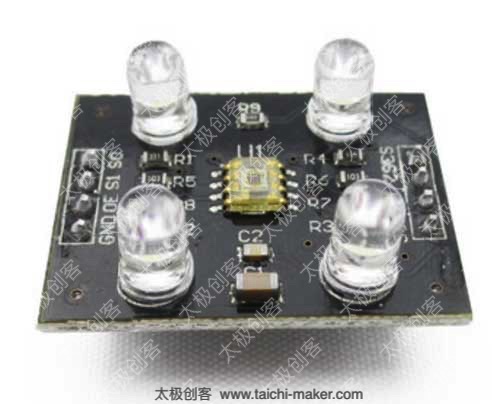

TCS230 颜色传感器模块基本介绍
- 板载TCS3200颜色传感器.
- 支持3V-5V电压输入
- 芯片的引脚全部已经引出，插针为标准100mil(2.54mm)，方便用于点阵板
- PCB尺寸：31.6(mm)x24.4(mm)

Arduino驱动TCS230 颜色传感器模块程序代码 (可双击代码全选程序内容)

/*
Arduino Uno TCS230
Color Recongnition Sensor
V 1.0
Created 2014
by 太极创客
http://www.taichi-maker.com

使用Arduino Uno R3驱动TCS230 颜色识别传感器模块。
程序运行后，传感器将识别的颜色RGB信息反馈给Arduino.
Arduino将通过红，蓝，绿三个LED显示所识别到的颜色。

Arduino连接设置
TCS230 Arduino
----------- --------
 VCC 5V
 GND GND
 s0 8
 s1 9
 s2 12
 s3 11
 OUT 10
 OE GND

红色Led 连接到Arduino D2引脚
蓝色Led 连接到Arduino D3引脚
绿色Led 连接到Arduino D4引脚

获得TCS230颜色识别传感器模块和Arduino的更多信息
请参阅太极创客网站：http://www.taichi-maker.com

*/

//TCS230连接设置
const int s0 = 8;
const int s1 = 9;
const int s2 = 12;
const int s3 = 11;
const int out = 10;

// LED连接设置
int redLed = 2;
int greenLed = 3;
int blueLed = 4;
// Variables
int red = 0;
int green = 0;
int blue = 0;

void setup()
{
 Serial.begin(9600);
 pinMode(s0, OUTPUT);
 pinMode(s1, OUTPUT);
 pinMode(s2, OUTPUT);
 pinMode(s3, OUTPUT);
 pinMode(out, INPUT);
 pinMode(redLed, OUTPUT);
 pinMode(greenLed, OUTPUT);
 pinMode(blueLed, OUTPUT);
 digitalWrite(s0, HIGH);
 digitalWrite(s1, HIGH);
}

void loop()
{
 color();
 Serial.print("R Intensity:");
 Serial.print(red, DEC);
 Serial.print(" G Intensity: ");
 Serial.print(green, DEC);
 Serial.print(" B Intensity : ");
 Serial.print(blue, DEC);
 //Serial.println();

 if (red < blue && red < green && red < 20)
 {
 Serial.println(" - (Red Color)");
 digitalWrite(redLed, HIGH); //点亮红色LED
 digitalWrite(greenLed, LOW);
 digitalWrite(blueLed, LOW);
 }

 else if (blue < red && blue < green)
 {
 Serial.println(" - (Blue Color)");
 digitalWrite(redLed, LOW);
 digitalWrite(greenLed, LOW);
 digitalWrite(blueLed, HIGH); // 点亮蓝色LED
 }

 else if (green < red && green < blue)
 {
 Serial.println(" - (Green Color)");
 digitalWrite(redLed, LOW);
 digitalWrite(greenLed, HIGH); // 点亮绿色LED
 digitalWrite(blueLed, LOW);
 }
 else{
 Serial.println();
 }
 delay(300);
 digitalWrite(redLed, LOW);
 digitalWrite(greenLed, LOW);
 digitalWrite(blueLed, LOW);
 }

void color()
{
 digitalWrite(s2, LOW);
 digitalWrite(s3, LOW);
 //count OUT, pRed, RED
 red = pulseIn(out, digitalRead(out) == HIGH ? LOW : HIGH);
 digitalWrite(s3, HIGH);
 //count OUT, pBLUE, BLUE
 blue = pulseIn(out, digitalRead(out) == HIGH ? LOW : HIGH);
 digitalWrite(s2, HIGH);
 //count OUT, pGreen, GREEN
 green = pulseIn(out, digitalRead(out) == HIGH ? LOW : HIGH);
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120
